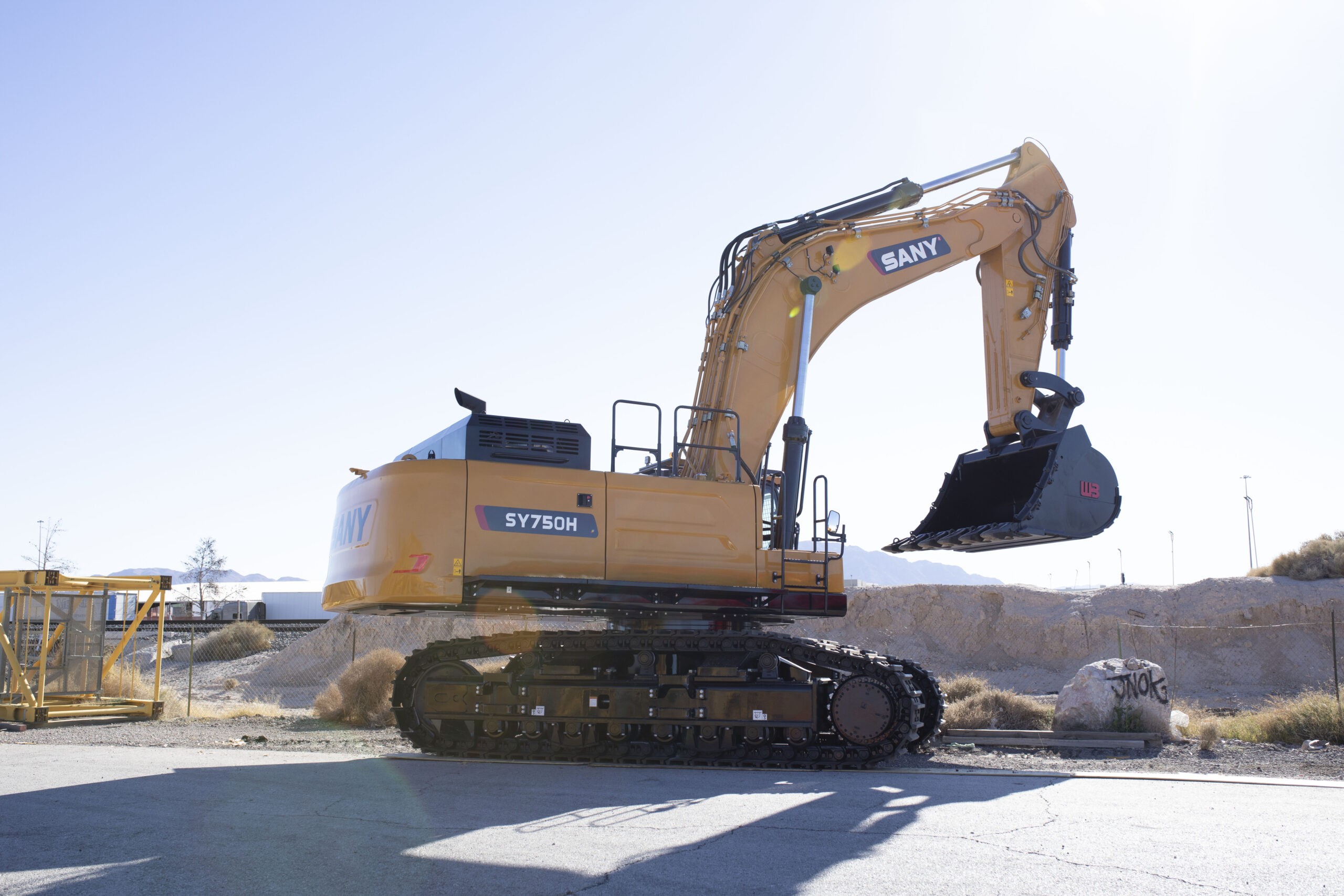

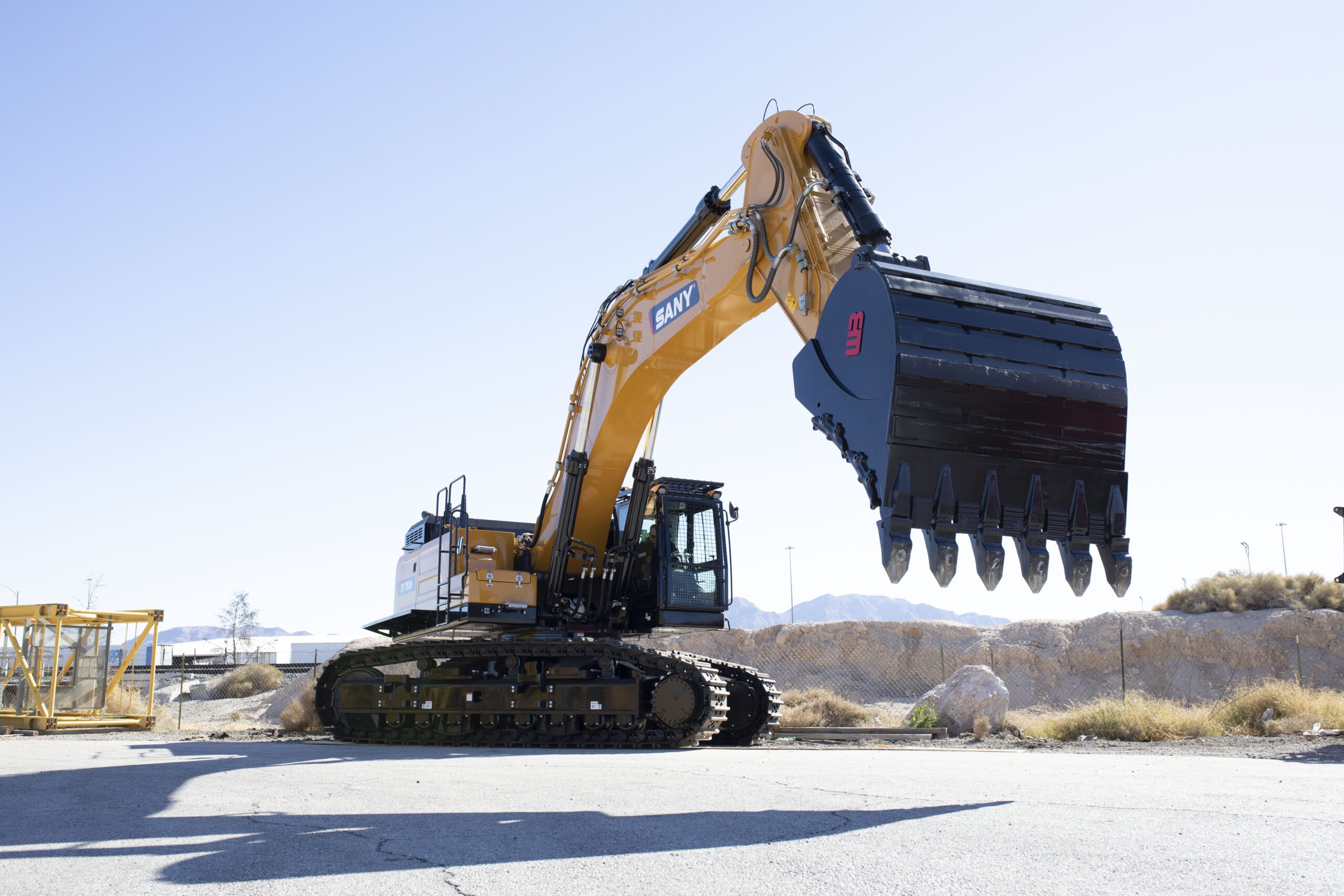

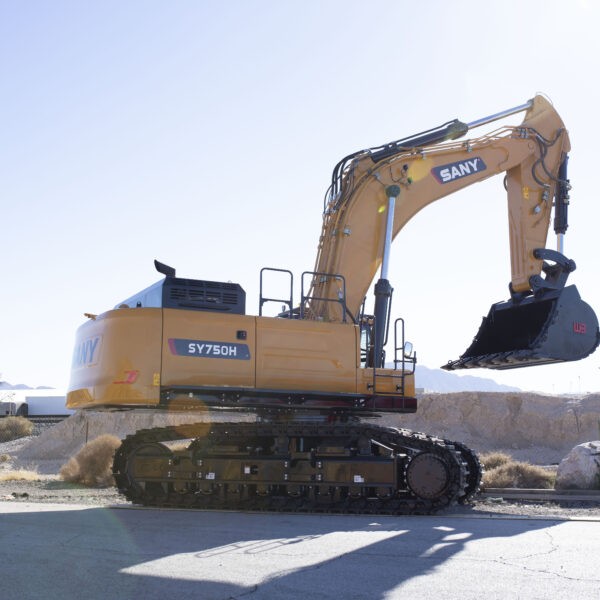

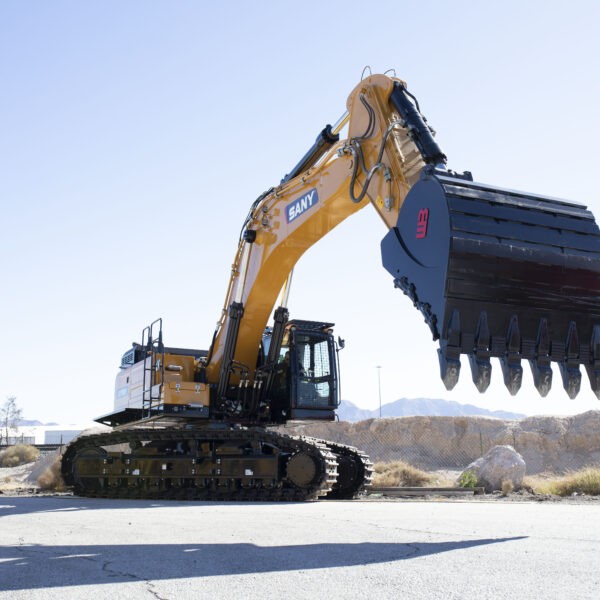

SY750H

173,063 lbs
78,500 kg

524 HP
391 kW

24′ 10”
7,580 mm

Features

*Based on theoretical calculation at max flow with no load. Subject to alterations.

Operating Weight	78,500 kg173,063 lbs
Ground Pressure	101.0 kPa14.6 psi
Engine	Cummins X15 Stage V / Tier4F
Displacement	14.9 L909.3 in³
Net Power	––
Gross Power	391 kW524 HP
Hydraulics	Positive Flow w/Pilot Control
Main Hydraulic Pump	Axial Piston – Variable Displacement
Operating Flow (maximum)	1,008.0 L/min266.3 gal/min
Operating Pressure (maximum)	34.3 MPa4,975 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	2.9 / 4.45 km/hr1.8 / 2.8 mph
Travel Effort (maximum)	546.8 kN122,926 lbf
Grade Capability	35°
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	28.5 MPa4,134 psi
Swing Speed (maximum)	7.2 RPM
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	650 mm26"
Track Rollers (per side)	8
Carrier Rollers (per side)	3

Boom Length	7,000 mm23’
Stick (Arm) Length	3,000 mm9' 10"
Maximum Digging Height	11,020 mm36' 2"
Maximum Dumping Height	7,170 mm23' 6"
Maximum Digging Depth	7,580 mm24' 10"
Maximum Vertical Wall Digging Depth	4,890 mm16'
Maximum Reach at Ground Level	12,100 mm39' 88"
Minimum Swing Radius	5,390 mm17' 8"
